Λεπτομέρειες:
Πληρωμής & Αποστολής Όροι:
|
Χαρακτηριστικό γνώρισμα: | Ανθεκτικός | Τεχνική: | Διατρυπημένος |
---|---|---|---|
Εκτίμηση φίλτρων: | 99% | 404 Not Found: | φίλτρο |
Ύφος ύφανσης: | Ενωμένος στενά | Δείγμα: | Δείγμα προσφοράς |
Υψηλό φως: | water filter pipe,sieve mesh sheets |
Easy-to-penetrate stainless steel mesh screen for filtering coal

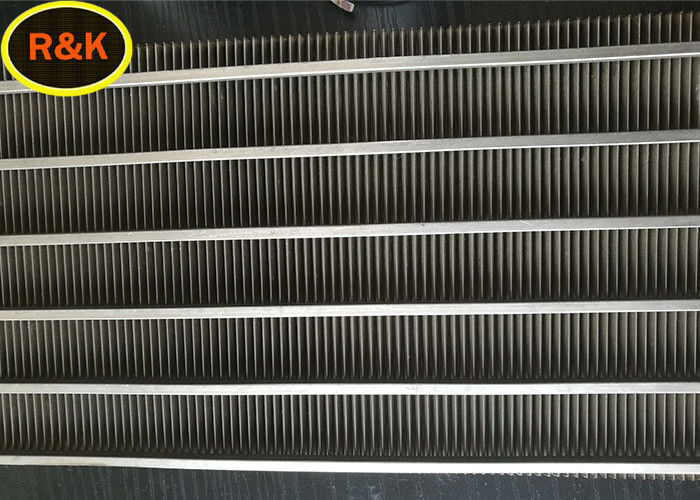

Description of wedge wire screen
Our screens offer high strength, long life and high flexibility for liquid/solid separation.
Johnson's screen is made by welding
The support rod has a V-shape that forms an inwardly extending groove that meets the most demanding standards
Rugged, rugged, consistent and slotted. The V-shaped opening allows only two points of contact with the particles, thereby preventing any risk of clogging.
Application of mine screen
The wedge mesh can be used with any INOXPA filter.
The wedge wire mesh is assembled to the filter body by a jig, which makes it easy and quick to disassemble for cleaning.
Can clean the wedge wire with reverse flow.
Feature of wedge wire mesh
- High mechanical strength
- Highly resistant to wear and vibration.
- It can withstand more pressure and temperature
- Perforated plate sieve.
- Longer screen life.
- Useful area larger than the standard Perforated screen.
Parameters of stainless steel wedge wire mesh
Surface Profile | W | H | Material |
10S | 0.75 | 1.425 | SS304, SS316/316L, Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
11SL | 0.75 | 1.8 | |
22S | 1.8 | 3.7 | |
4S | 0.45 | 1.2 | |
50SL | 3.4 | 7.5 |
Support Profile | W | H | Material |
Q22 | 2 | 2.28 | SS304, SS316/316L, Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
Q35 | 3 | 5 | |
Q53 | 5 | 3 | |
D56 | 5 | 5.6 | |
D45 | 3.8 | 6.0 |
